The Allxon OOB Enabler, through continuous evolution and integration with different hardware manufacturers, has developed various power cycling feature combinations. To verify which features are available on your OOB Enabler, please follow the steps.

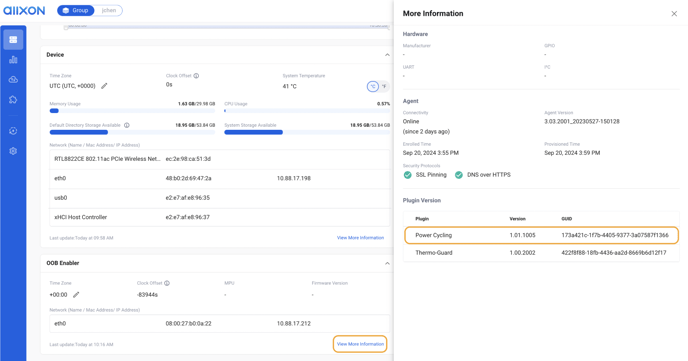

- Go to the Device Details page, locate the OOB Enabler card, and click on the View More Information button to display additional details about your OOB Enabler. Here, you will find the GUID of the Power Cycling plugin.
- Refer to the following list of Power Cycling features to find the features supported by your Power Cycling setup.
|
OOB Enabler |
Ajax |
Ajax |
Bolt |
|
APPGUID |
fbfdb9e2-da68-46c7-8f67-eb366514cad5 |
173a421c-1f7b-4405-9377-3a07587f1366 |
173a421c-1f7b-4405-9377-3a07587f1366 |
|
Version |
1.02.2001 |
1.00.2002 |
1.01.1005 |
|
Switch ON/OFF |
V |
V |
V |
|
Power Reset* |
V |
V |
V |
|
Force shutdown |
V |
V |
V |
|
Power Detection** |
|
|
V |
|
Power Scheduling** |
|
|
V |
|
Always ON** |
|
|
V |
* To execute a Power Reset, ensure the OOB Enabler is correctly connected to the device’s Power Reset features.
** To schedule power cycling or set up Always ON, ensure the OOB Enabler is correctly connected to the device’s power detection pin.
