How to Use Tmate Add-In Plugin

Let’s Get Started!

1. Initiate Tmate Add-In Plugin for Installation

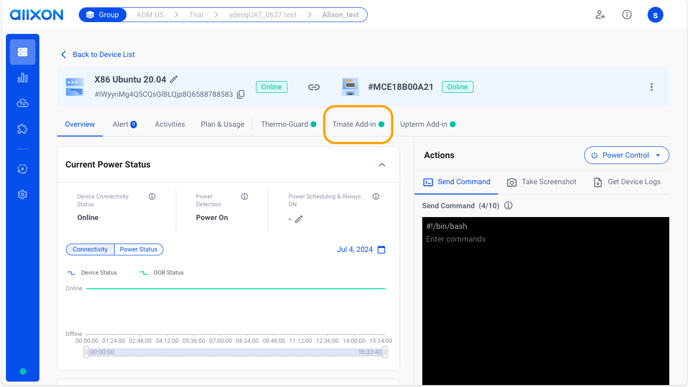

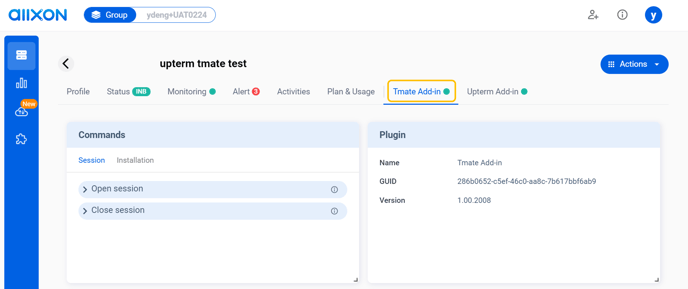

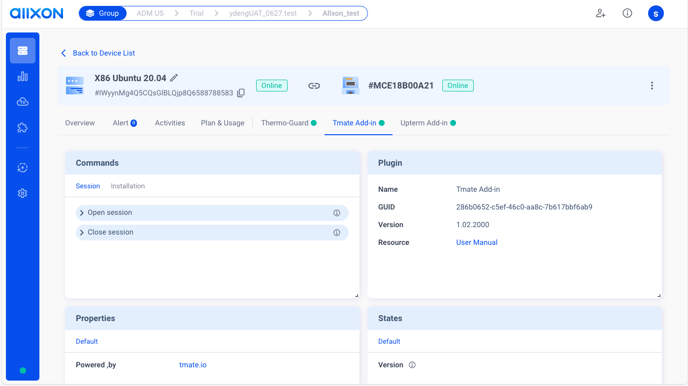

  • Head over to Device Details Page, and click on the Tmate Add-in tab.

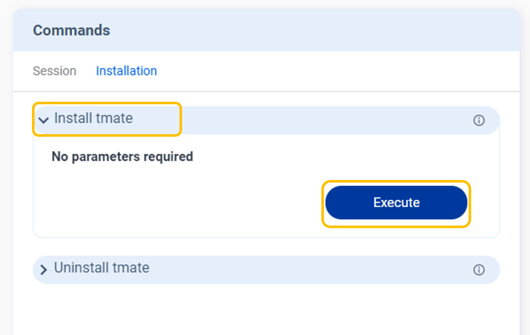

  • Click on the Install Tmate (under the Installation tab) in the Commands card, then click on the Execute button.
tmate-install
  • Select devices to send command and click on the Execute button.

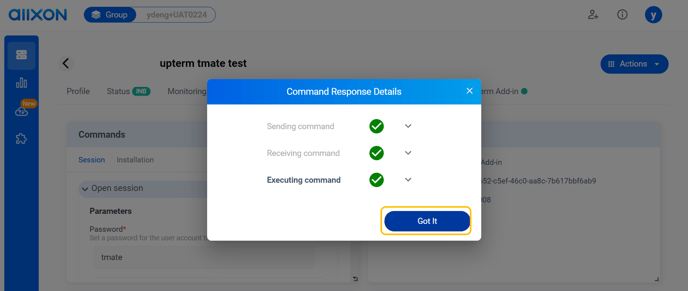

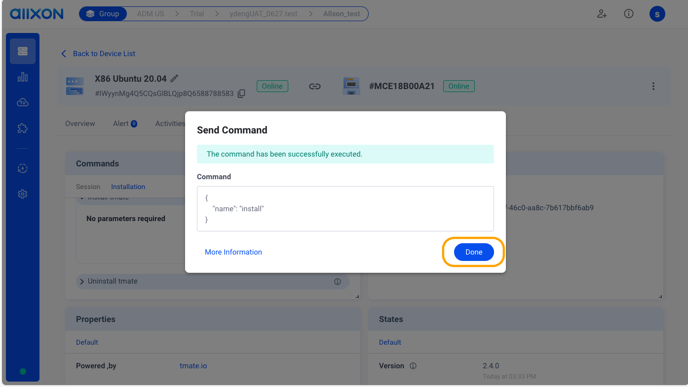

  • Wait for 1 minute for initiation, then click on the Done button.




2. Set Up Open Session

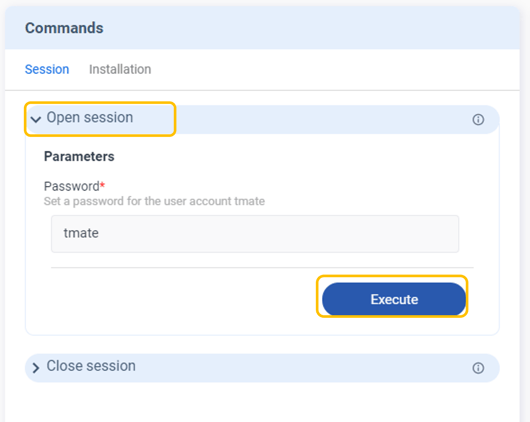

  • Go to the Open session (under the Session tab) in the Commands card and Click on the Execute button.

tmate-open

  • Select devices to send command and click on the Execute button.

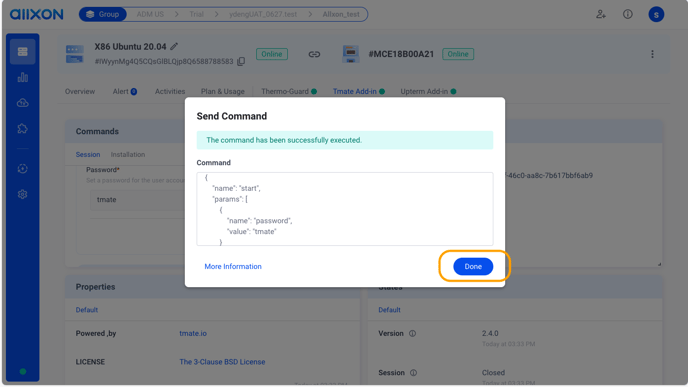

  • A secure SSH session will be generated in 1~2 minutes after the session is opened. When the process is done, click on the Done button.

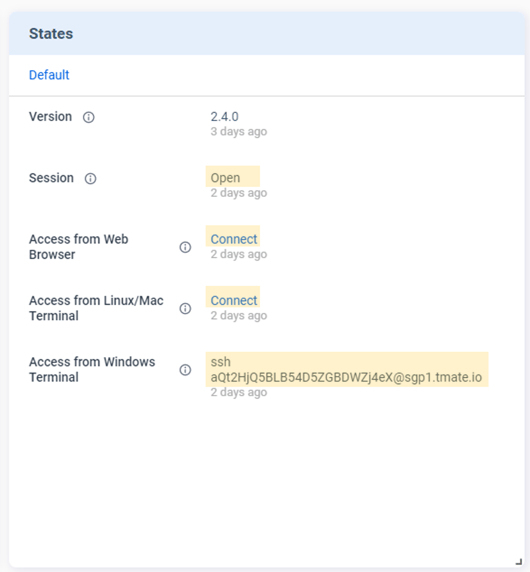

The Session status will be updated to “Open”  in the States card.
tmate-states



3. Connect to SSH Session Based on Your Client

  •  Access from Web Browser:

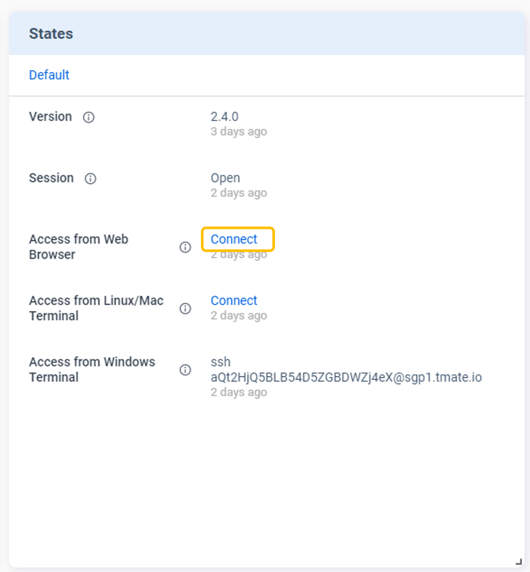

> Click on the Connect.tmate-web-connect

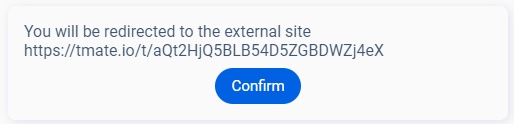

> A web session is connected.tmate-web-external

> A web session is connected. (If it's your first time opening the session, the screen may appear black. Press Ctrl + C to bring the screen up.)

 tmate-web-terminal-2

NOTE:

If the web session appears blank, try pressing <Ctrl + C> to continue the process.



  • Access from Linux/ Mac terminal:

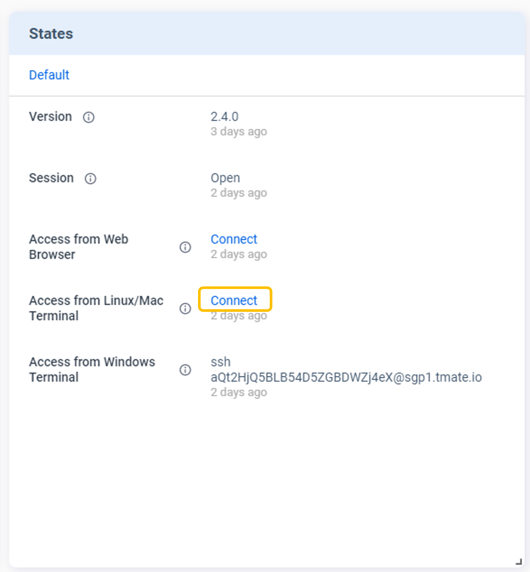

> Click on the Connect tmate-linux-connect

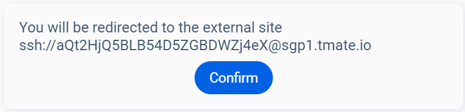

> Confirm to redirect to Tmate external site.tmaste-linux-external

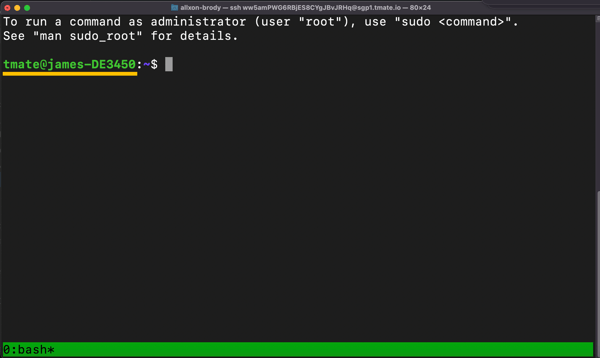

> The terminal pops up automatically and SSH session is connected.tmate-mac

  • Access from Windows Terminals:

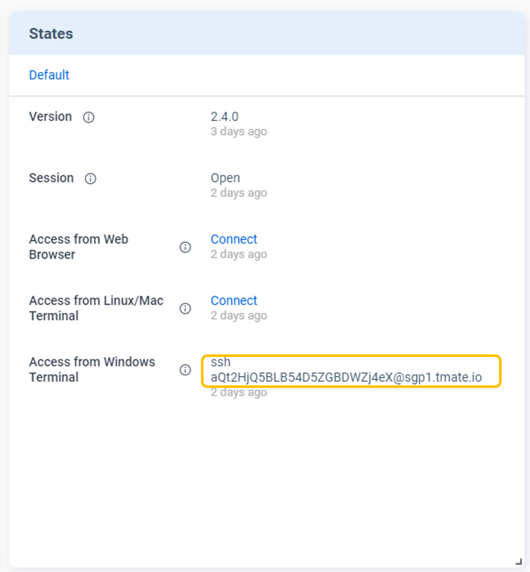

> Copy the URL of SSH Session

tmate-windows-connect-2

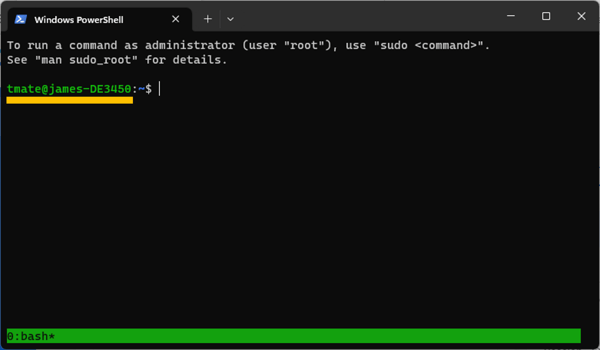

> Paste the URL on the Windows PowerShell and the SSH Session is connected.tmate-windows-terminal

You’re All Set!
