Allxon’s Out-Of-Band (OOB) technology

Integrates Hardware-Based Solutions with a Full-Featured SaaS Platform

Essential for service providers to remotely manage Edge AI devices with 24/7 monitoring and management capabilities, without complex setups —simply by using devices equipped with Allxon's certified OOB Enabler.

Start Now

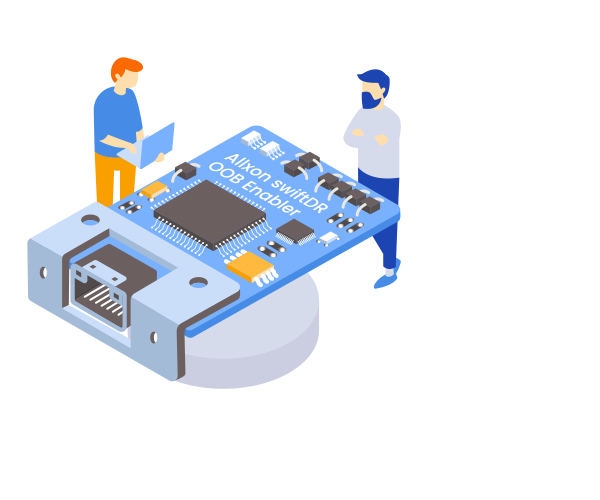

illustration-cloud-based OOB technology-1
go to top
contact us

What's OOB Management

OOB management is a vital component of distributed, unmanned Edge AI device management, particularly in environments where high availability, security, and remote access are paramount requirements.

What's OOB Management

In the rapidly evolving realm of Edge AI, Out-of-Band (OOB) management emerges as a vital asset. This sophisticated system empowers Managed Service Providers (MSPs) and Systems Integrators (SIs) to seamlessly oversee and control edge devices remotely, regardless of their power status or operating system functionality. Unlike traditional in-band management, OOB operates autonomously, ensuring uninterrupted connectivity and oversight, crucial for maintaining the efficiency and reliability of Edge AI operations.

Today, work extends beyond conventional office settings, with remote work becoming increasingly prevalent. While IT service desks may not always be physically present at every location, the need for PC support remains crucial, especially as modern computing spans diverse environments and use cases. From repairing digital signage displays in busy airports to troubleshooting self-service kiosks in bustling subway stations, and managing devices in harsh industrial environments like wind turbines and mines, the complexity of device management has grown exponentially.




INB vs. OOB

What Makes Them Different?

In-band management operates within the standard network channel and requires software installation, while out-of-band management functions independently from the operating system or power status, ensuring continuous remote access.

Why choose one over the other?
Consider the benefits of having both for comprehensive device management.

Features INB Management OOB Management
Connectivity Uses the usual network channel Utilizes a separate management plane
Software Requirement Requires software installation Typically a hardware-based solution
Activation Operates after OS boot-up Functions regardless of OS or power status
Network Independence Dependent on network components Independent of other network components
Accessibility May lead to lockout scenarios Enables remote management at all times
Cost-effectiveness Lower-cost option May require an initial investment in hardware

OOB Technology Features

Always ON

Power Control

icon-force_shutdown
Basic Power Cycling

Features :
● Power Switch
● Force Shutdodwn
● Reset

OOB Enabler Pinout :
GPIO
Device Pin Header :
RWT_SW, RST_SW

icon-reboot_reset
Advanced Power Cycling

Features :
● Power Switch
● Force Shutdodwn
● Reset
● Power ON/OFF Scheduling
● Power On/OFF Detection
● Device Always-On

OOB Enabler Pinout :
GPIO
Device Pin Header :
RWT_SW, RST_SW, PWR_DEF

illustration-fast & effective services

Monitor Beyond Device

Environmental Detection

icon-thermo-guard
Thermo-Guard

Features :
● Temperature Monitoring
● Automatically cycles power when reaching threshold

OOB Enabler Pinout :
I2C
Senor Support :
LM75

icon-tamper_detection
Tamper Detection

Features :
● Alert Sending when a tamper event is detected
OOB Enabler Pinout :
GPIO
Senor Support :
switch sensor

illustration-Expand Remote Management-615-1

24/7 Edge AI Operations

Access & Troubleshooting

icon-remote_terminal
Cloud Serial Console

Features :
● Remote access to serial console
● Troubleshoot even when device unresponsive
OOB Enabler Pinout :
Debug UART
Device Pin Header :
Serial Console Port
(UART_Tx, UART_Rx)

icon-SSD_recovery
Remote SSD Backup & Recovery

Features :
● Remote SSD Backup
● Remote SSD Recovery
OOB Enabler Pinout :
GPIO
SSD Supported :
SV25T-M280

illustration-Centralized Group Settings Readily Available-1

Flexible Selection

Multi- Connectivity

icon-group_provisioning
10/100Mbps Ethernet

NUC980 Pinout :
RMII
Connector :
RJ45

icon-wireless
Wi-Fi

NUC980 Pinout :
USB/H
Supported Module :
TBD

icon-wireless
4G LTE

NUC980 Pinout :
USB/H
Supported Module :
Quectel EC21 series, EC25 series, EG25-G

icon-NCSI
NC-SI

NUC980 Pinout :
i210

illustration-Flexible Communication Options-615-1

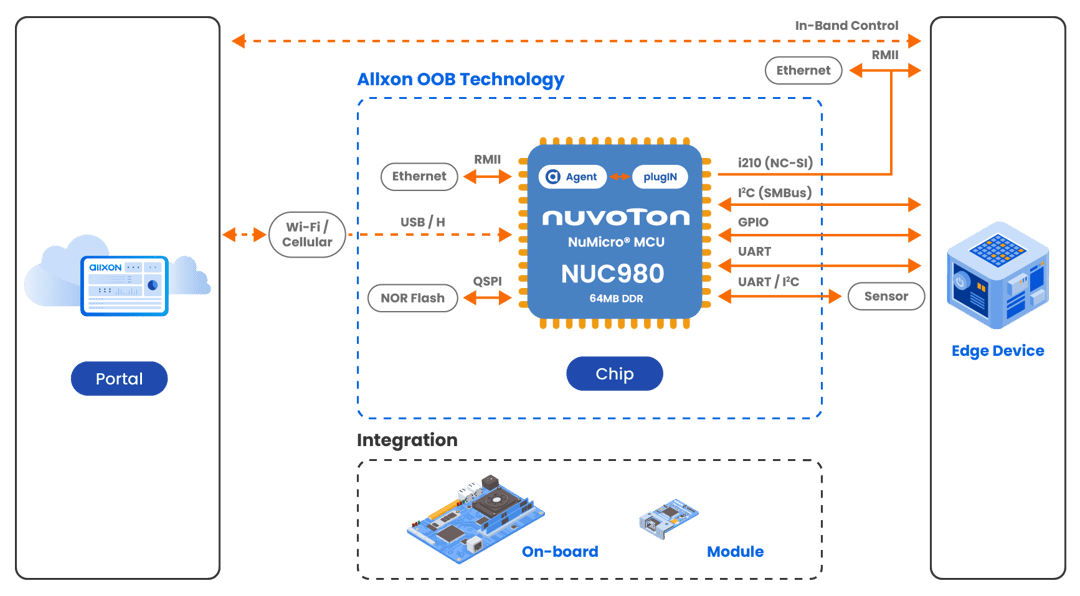

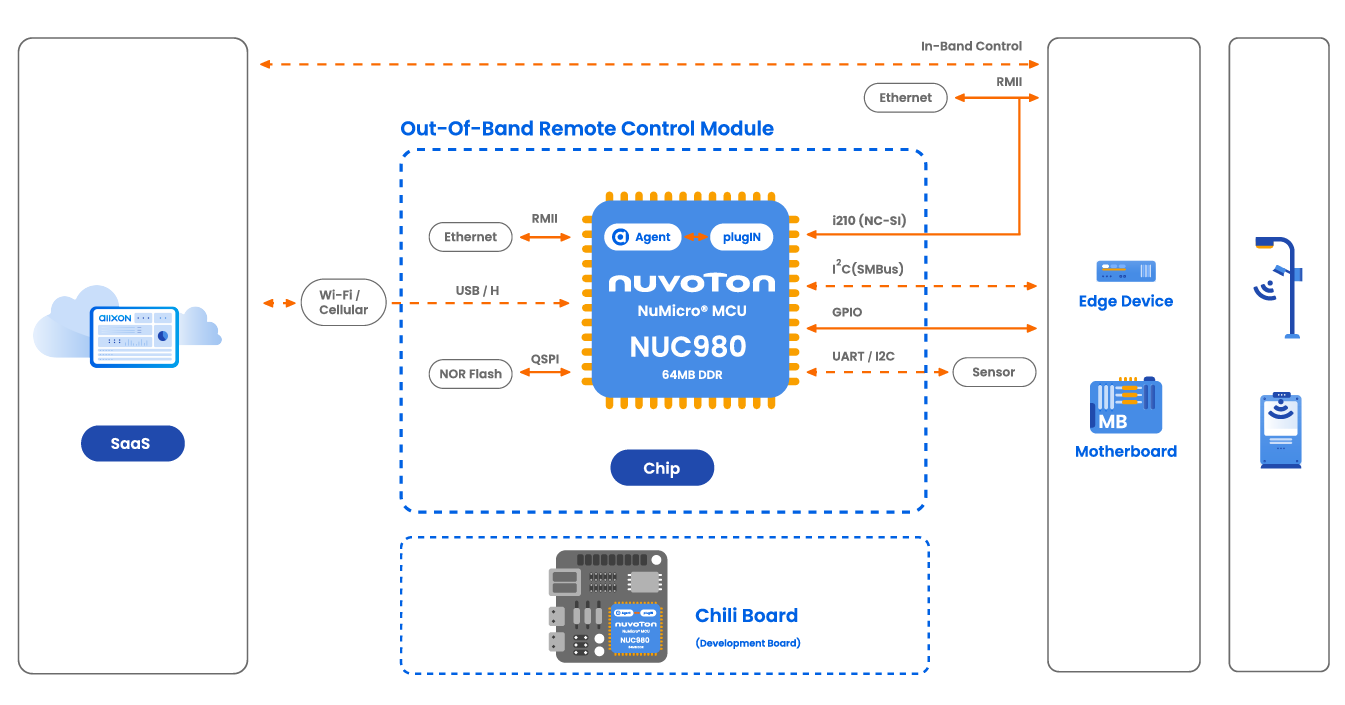

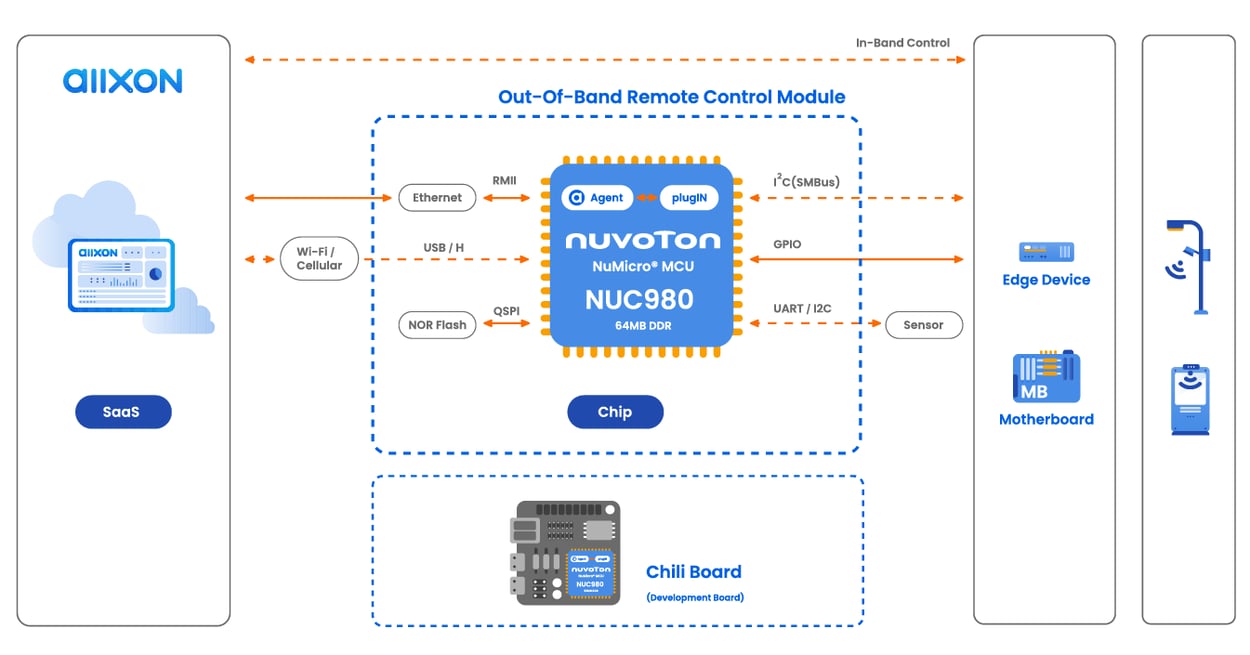

Allxon OOB Technology Diagram

Unlock advanced functionalities for the OOB Enabler with a wider array of protocols

OOB Technology_diagram

FAQ

Find answers to your questions.

I am a hardware vendor, how do I integrate an Allxon OOB Enabler into my device?


For hardware partners who are looking to integrate Allxon swiftDR OOB Enabler or ...

See More
icon-hardware_integration

What terms are used to label the OOB port on the casing of the device?


Our hardware partners have used terms like "OOB," "OOB control," "OOB Management." There is no standard...

See More
icon-newspaper

How do I embed Allxon's unique serial numbers onto OOB module pieces in mass production?


Allxon will provide support during production, ensuring you have the files and ...

See More
icon-software_integration
